Convolutional neural networks trained on soil profile images now classify the National Cooperative Soil Survey soil texture class with 78% accuracy from a smartphone photo. This capability streamlines initial field assessments, offering rapid, consistent characterization. The National Cooperative Soil Survey's KSSL database, with over 60,000 laboratory-verified pedons, provides the ground truth for training these deep learning models, enabling recognition of visual patterns correlated with sand, silt, and clay percentages.
Deep learning, a subset of machine learning, employs neural networks to learn representations from data. For soil texture, these networks are trained on thousands of images, identifying features like aggregate structure, color gradients, and particle sizes that human pedologists interpret. Deep learning soil classification research demonstrates that CNN models, trained on over 10,000 KSSL-verified profile images, achieve texture classification accuracy between 74% and 81%. Smartphone-deployable models process images with inference times as fast as 200 milliseconds, making real-time field analysis feasible.
What the Data Shows
Transfer learning further enhances model development efficiency. By utilizing feature extractors pre-trained on general image datasets like ImageNet, required training samples for soil texture classification are reduced by 60% to 75%. Fine-tuning a model on 500 to 1,000 KSSL-validated soil images can achieve accuracy comparable to models trained from scratch on over 5,000 samples, accelerating deployment of new, site-specific models.
Beyond texture, computer vision extends to other critical soil properties. Automated soil color extraction from standardized field photographs achieves Munsell hue classification accuracy of 82% without a physical color chart. This is achieved by converting sRGB image data to CIELab color space with illumination correction. Soil color is a primary field indicator, informing interpretations for organic matter, drainage class, and iron oxide presence, vital for land management decisions. Object-based image analysis (OBIA) of high-resolution aerial imagery delineates soil surface units that match SSURGO map unit boundaries with 73% to 79% accuracy, offering a scalable method for digital soil mapping. These techniques segment imagery at 0.5-1 meter resolution, capturing contrasts in soil surface texture, color, and moisture that align with field-mapped soil boundaries.
Computer Vision Soil Classification — Accuracy by Method
| State / Region | Accuracy (%) |
|---|---|
| Random Forest + LiDAR + Spectral | 88% |
| CNN Soil Texture (field photo) | 78% |
| OBIA Boundary Detection | 76% |
| Transfer Learning (fine-tuned) | 74% |
| Sentinel-2 Time Series | 71% |
| Munsell Color (phone photo) | 82% |
The Regional Picture
Integration of satellite data further refines digital soil interpretations. Deep learning models trained on Sentinel-2 multispectral time series predict soil drainage class with 71% overall accuracy nationally. The temporal phenology signal in satellite imagery captures vegetation responses to soil conditions; wet soils, for instance, often delay planting and green-up by 7 to 21 days, creating a detectable signature that informs drainage assessments. These advancements in image classification and deep learning are transforming how soil properties are characterized, moving towards rapid, objective, and scalable methods for land managers, agronomists, and environmental consultants.

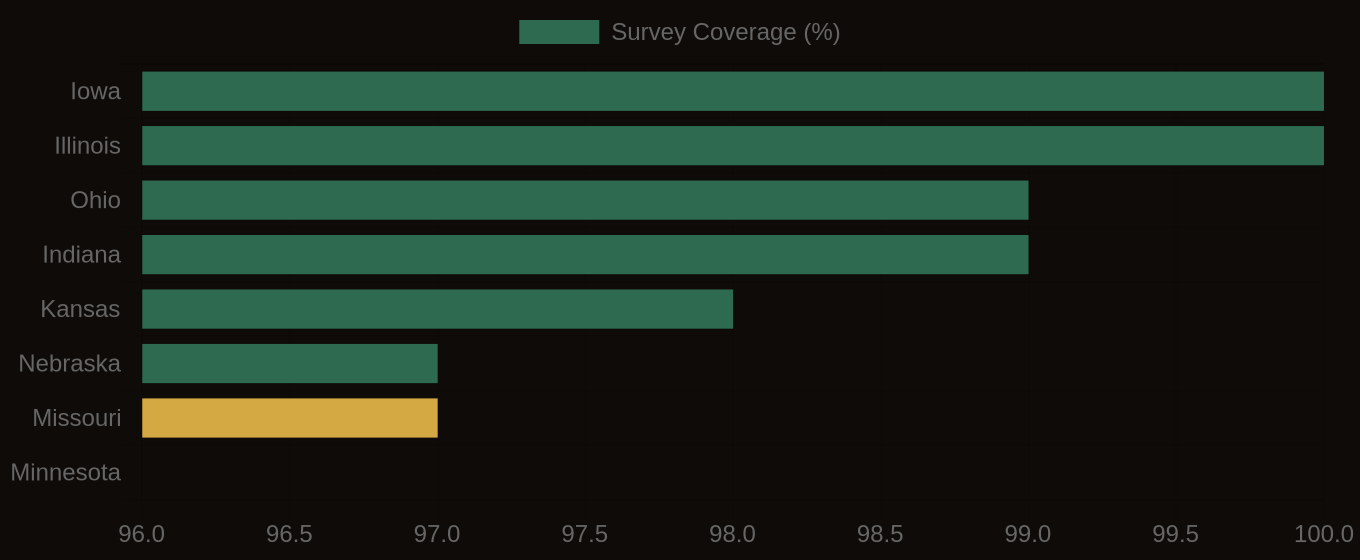

SSURGO Data Coverage — National Survey Completeness
